Solar Charge 12Volts Controller PWM 02 in Kenya

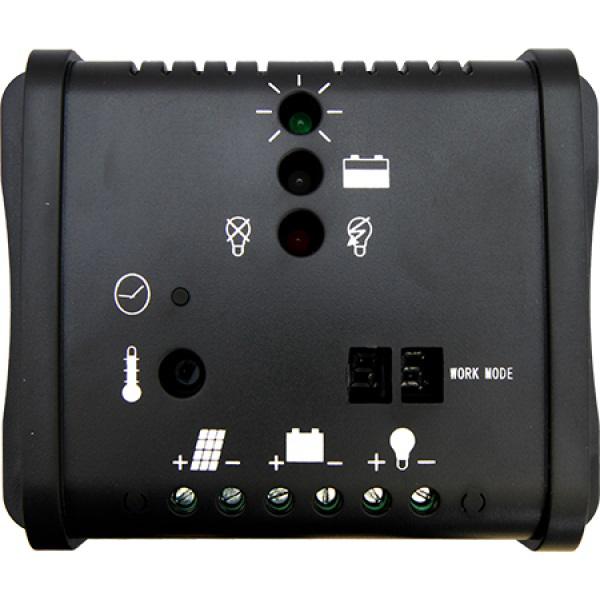

Solar Charge Controller
Code: LU-SCC-12V-24V-PWM-02
Power: 12v – 24v
This PWM type charge controller is suitable for 12 volt or 24 volt DC panels and has a dual timer option. Rated at 20 Amp max. It can be used as a standalone charge controller or the solar panel can act as a photocell for controlled lighting use. This control module offers a dual timer mode which allows two on/off times per night, dusk till dawn, and standard single time mode. For example this control module in dual timer mode will allow a light to run from sun set for x hours (2-7 hours), off for a calculated time, and back on x hours (1-5 hours) before sun rise. The calculated off time is automatically determined by the charge controller based on the previous night’s characteristic.
Show more
Show less
-
Inquire
- |
-
Details
- |
-
Reviews (0)
- |
Solar Charge Controller
Code: LU-SCC-12V-24V-PWM-02
Power: 12v – 24v
This PWM type charge controller is suitable for 12 volt or 24 volt DC panels and has a dual timer option. Rated at 20 Amp max. It can be used as a standalone charge controller or the solar panel can act as a photocell for controlled lighting use. This control module offers a dual timer mode which allows two on/off times per night, dusk till dawn, and standard single time mode. For example this control module in dual timer mode will allow a light to run from sun set for x hours (2-7 hours), off for a calculated time, and back on x hours (1-5 hours) before sun rise. The calculated off time is automatically determined by the charge controller based on the previous night’s characteristic.
AVAILABILITY: In stock
Solar Garden Light
Code: LU-SGL-9W-30W-3.5M
Power Consumption: 9W-30W
High efficiency polycrystalline solar panel
Durable, shockproof, safe actual application
Soft, anti-glare design, High brightness LED light source
AVAILABILITY: In stock
Integrated Solar Street Light
Code: LU-ISSL-20W-45W
Power Consumption: 20W-45W
Mono Solar Panel, over 100 lm/W Bridge lux LED adopted
Long service time Lithium-Iron phosphate battery
AVAILABILITY: In stock
Solar Charge Controller
Code: LU-SCC-12V-24V-MPPT-01
Power: 12v – 24v
This is the most sophisticated MPPT Solar Charge Controller and Light Activator offered by Solar Illuminations. This programmable controller regulates and manages the solar panel power, battery power, and controls lighting activation. It also offers a variety of unique features not offered by other MPPT Charge Controllers. It automatically recognizes 12V or 24V battery configurations and can handle up to 100V of solar panel input with a maximum of 10A. The light activator has multiple modes including manual on/off, dust to dawn, timer mode, and dual timer mode. MPPT Charge Controllers are typically 30% more efficient than a regular PWM solar charge controllers. This is the best technology for large solar systems requiring the most efficient technology.
AVAILABILITY: In stock
Solar Street Light
Code: LU-SSL-30W-100W-5M
Solar Street Light 30/100 Watts-5 meters available here in Kenya
Power Consumption: 30W-100W
Different models of LED street light and pole set available
Automatic on/off, light/time intelligent control, dimmable mode
AVAILABILITY: In stock
Solar Garden Light
Code: LU-SGL-15W-50W-3.5M
Power Consumption: 15W-50W
High efficiency polycrystalline solar panel
Durable, shockproof, safe actual application
Soft, anti-glare design, High brightness LED light source
AVAILABILITY: In stock
Solar Charge Controller
Code: LU-SCC-12V-24V-MPPT-02
Power: 12v – 24v
This MPPT type charge controller is suitable for 12 volt or 24 volt DC panels. Maximum rating is 20 Amps. Typically at least 30% more efficient than regular PWM charge controllers. Far more efficient than a regular PWM solar charge controller. This programmable control module regulates and manages the solar panel power, battery power, and controls charging. It is easy to install and can be used on 12 volt or 24 volt systems.
AVAILABILITY: In stock
Solar Street Light
Code: LU-SSL-20W-70W-4M
Solar Street Light 20-70 Watts 4 meters available here in Kenya
Power Consumption: 20W-70W
Different models of LED street light and pole set available
Automatic on/off, light/time intelligent control, dimmable mode
AVAILABILITY: In stock
Solar Panel
Code: LU-SP-6W-12V-DC
Power: 6w – 12v
6 Watt 12 Volt Solar Panel
This is a universal 12 volt dc / 6 watt solar panel suitable for a variety of applications. Supplied with tempered glass and an aluminum frame. Easy ve and -ve connection to the terminal block located on the back of the solar panel.
AVAILABILITY: In stock
Solar Street Light
Code: LU-SSL-70W-240W-8M
Solar Street Light 70/240 Watts 8 meters available here in Kenya
Power Consumption: 70W-240W
Different models of LED street light and pole set available
Automatic on/off, light/time intelligent control, dimmable mode
AVAILABILITY: In stock
Solar Street Light
Code: LU-SSL-50W-180W-7M
Solar Street Light 50W/180 Watts-7 meters available here in Kenya
Power Consumption: 50W-180W
Different models of LED street light and pole set available
Automatic on/off, light/time intelligent control, dimmable mode
AVAILABILITY: In stock
Solar Panel
Code: LU-SP-20W-12V-DC
Power: 20w – 12v
20 Watt 12 Volt Solar Panel
This is a universal 12 volt dc / 20 watt solar panel suitable for a variety of applications. Supplied with tempered glass and an aluminum frame. Easy ve and -ve connection to the terminal block located on the back of the solar panel.
AVAILABILITY: In stock
Solar Panel
Code: LU-SP-14W-12V-DC
Power: 14w – 12v
14 Watt 12 Volt Solar Panel
This is a universal 12 volt dc / 14 watt solar panel suitable for a variety of applications. Supplied with tempered glass and an aluminum frame. Easy ve and -ve connection to the terminal block located on the back of the solar panel.
